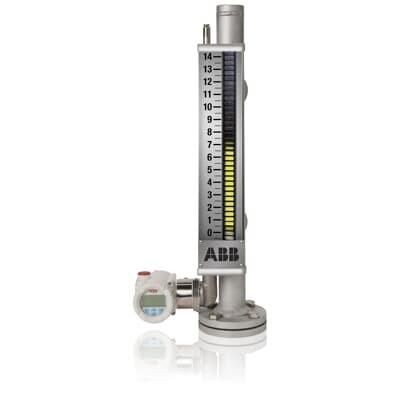

With over 350,000 installations worldwide, our KM26 magnetic level
gauge (MLG) has provided custom engineered solutions to liquid
level applications in industries such as: oil and gas, refinery,
chemical, petrochemical, power generation and many more. The KM26
MLG has proven itself to be a safe, reliable, maintenance free
solution for total and/or interface level detection in toxic,
corrosive, high pressure and high temperature processes.
ABB offers the standard KM26 MLG with a chamber of virtually any
non-magnetic material, extruded process connections, a custom
engineered float and all accessories with 316 stainless steel
construction.
ABB's KM26 MLG is the industry's only level gauge with optional
certifications including: PED, ASME (U, UM or S), ATEX
constructional safety and IP68 certified hermetically sealed
indicator.
The KM26 Magnetic Level Gauge has provided custom engineered
solutions to liquid level applications in industries such as: oil
and gas, refinery, chemical, petrochemical, power generation and
many more. The KM26 MLG has proven itself to be a safe, reliable,
maintenance free solution for total and/or interface level
detection in toxic, corrosive, high pressure and high temperature
processes.
Features:
Available materials
− Stainless steel—304/304L, 316/316L, 317/317L, 321, 347, 904
− Alloy 20
− Hastelloy®—B, C-276
− Alloy 600, 625, 800, 825
− Titanium
− Teflon® (registered trademark of DuPont) coated stainless steel
− Fiberglass—epoxy or vinyl ester resin
− PVC, CPVC, Kynar®
− Polypropylene
− Zirconium
− Monel
− For other materials consult factory
Process capabilities
− Full vacuum to 5000 PSI / 345 BAR
− -320 to 1000 °F/ -196 to 538 °C
− 0.25 specific gravity
− All liquid viscosities
− Interfaces as Low as .03 ΔSG
Testing and documentation available upon request
− Radiographic examination
− Liquid dye penetrant examination
− Hydrostatic examination
− PMI (Positive Material Identification) material certification
− ASME “U,” “UM,” or “S” stamp
− Third party inspection
− Material Certificates
− ANSI/ASME B31.1, B31.3
− PED certification
− NACE MR0103, NACE MR0175
− Canadian registration number (CRN)
− Marine and industrial type approval for high-pressure boilers
− Mechanical Function Test
− Float Curves (Total Level only)
|
|
