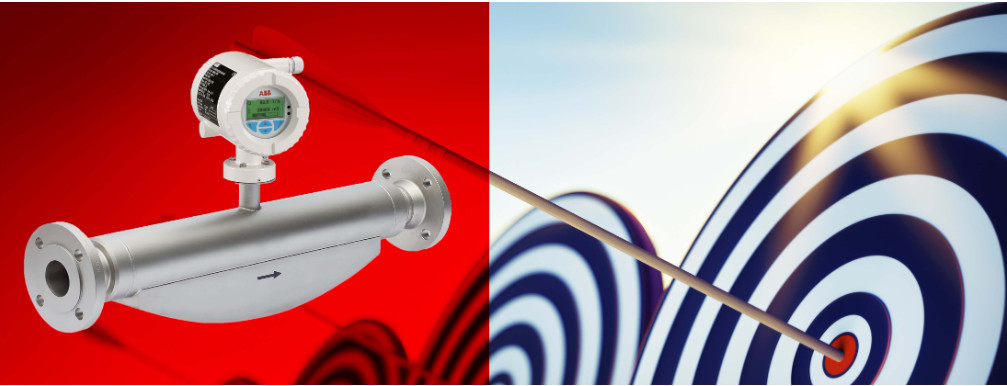

Coriolis mass flowmeter CoriolisMaster FCB430 and FCB450
CoriolisMaster FCB400 series of compact Coriolis mass flowmeters feature low pressure drop, high capacity, intuitive ABB common display, five modular I/O`s and various communication protocols, now with OIML R117 and MID approved.
With no up or downstream piping requirements the compact Coriolis flowmeters can be installed in the tightest spaces, enabling applications not possible before.
| Sensor | ||||
| Model | FCB400 standard design | FCH400 hygienic design | ||
| Chassis | Integral mount design, remote mount design | |||
| Measuring accuracy for liquids | FCB430 | FCB450 | FCH430 | FCH450 |
| Mass flow* | 0.4%.0.25%and 0.2% | 0.1% and 0.15% | 0.4%,0.25% and 0.2% | 0.1% and 0.15% |
| Volume flow* | 0.4%.0.25%and0.2% | 0.15% and0.11% | 0.4%.0.25%and 0.2% | 0.15%and 0.11% |
| Density | 0.01kg/l | 0.002kg/l 0.001kg/l (optional) 0.0004kg/l (optional) | 0.01kg/l | ·0.002kg/l 0.001 kg/l (optional) 0.0004kg/l (optional) |
| Temperature | 1K | 0,5K | 1K | 0,5K |
| Measuring accuracy for gases* | 1% | 0.5% | 1% | 0.5% |
| Permissible measuring medium temperatura Tmedlum | -50 to 160°C (-58 to 320F) | -50 to 205°C (-58 to 400F) | -50 to 160°C (-58 to 320F) | -50 to 205C (-58 to 400F) |
| Process connection | ||||
| Flange DIN 2501/EN 1092-1 | DN 10 to 200；PN 40 to PN 160 | 一 | ||
| Flange ASME B16.5 | DN 2/1 to 8 in； CL150 to CL1500 | 一 | ||
| jis flange | DN 10 to 200: JIS 10K to 20K | 一 | ||
| Pipe fitting DIN 11851 | DN 10 to 100 (3/8 to 4 in) | DN 20 to 100 (% to 4in) | ||
| Pipe fitting SMS 1145 | DN 25 to 80 (1 to 3in) | 一 | ||
| Tri-clamp DIN 32676(ISO2852) Tri-clamp BPE | DN 15 to 100 (1/4 to 4in) DN3/8 to 4in | DN 20 to 100 (%4 to 4in) DNW:to 4in | ||
| Female thread DIN ISO 228 andASME B 120.1 | DN 15；PN100 | 一 | ||
| Other connections | On request | Onrequest | ||
| Wetted material | Stainless steel1.4435 or 1.4404(AISI 316L), nickel alloy C4/C22 | Stainless steel, polished 1.4404 (AISI 316L) or 1.4435(AISI 316L) | ||
| IP rating | Integral mount design: IP 65 / IP 67, NEMA 4X Remote mount design: IP 65 /IP 67/IP 68 (sensor only, immersion depth:5m), NEMA 4X | |||
| Approvals | ||||
| Explosion protection | ATEX/IECEx/UKEX/cFMus /EAC-Ex | ATEX /IECEx/UKEX/cFMus/EAC-Ex | ||
| Hygiene approvals | 一 | FDA compliant | ||
| Legal metrology | OIML R117, MID, devices for legal metrology in accordance with API /AGA | |||
| Further approvals | At www.abb.com/flow or upon request. | |||
| Indication of accuracy in % of the measured value | ||||
The FCB400 series delivers:
The FCB450 adds:
General specifications:
|
|
